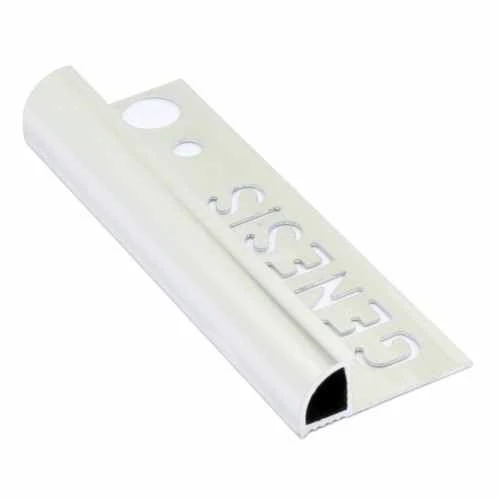

Genesis 10mm Bright Silver Aluminium Pro Quadrant Edge Tile Trim 2.5m

10mm Aluminium Pro Quadrant Edge Tile Trim 2.5m – Bright Silver – Genesis

10mm Aluminium Quadrant Edge Tile Trim 2.5m – Bright Silver – Genesis

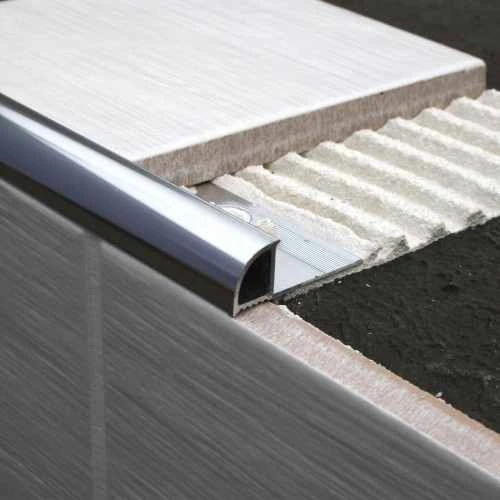

Genesis Tile Trim offers a perfect quadrant face. Designed to protect the edge of ceramic or similar hard surface in wall or floor installations. Designed with a vertical anchor leg to give the front face more strength.

• Length 2500mm

Tile Trim Installation Instructions

1. Use the correct trim according to tile thickness.
2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
3. Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.
4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
6. Fill the joint completely with grout.
