Kudos Connect2 1000 X 800mm LH Offset Quadrant Shower Tray

Connect2 Offset Quadrant Shower Tray 1000 x 800mm Left Hand

This Unique Shower Tray from the Kudos Connect2 range is a unique Shower Tray as joists will no longer be in the way while installing. The Connect2 Shower Tray features a waste that can be installed without having to reposition or raise the tray.

The Kudos Connect2 Square Shower Tray is manufactured from a Resin Bonded Stone Filler for stability and layered with an acrylic capped ABS Skin for increased durability. The one of a kind waste that is supplied with this Shower Tray is a reinforced magnetic waste to ensure it stays in position and doesn’t flex or move when being stepped on.

Complete your Kudos Connect2 Shower Tray by purchasing the 50mm Waste from the drop-down section above.

With a connect 2 tray the ability to connect to at least one of the waste holes is guaranteed provided that the span between joists is no less than 305mm and the joist width does not exceed 75mm.

Shower tray installation instructions

Connect2 Shower Tray Features

• 1000mm Wide
• 800mm Long
• 35mm High
• Unique Offset Waste
• Works on all standard joist sizes and spans
• High Gloss Acrylic Capped ABS Skin
• Manufactured from Structural Resin Bonded Sone Filler
• Reinforced Magnetic Waste Cover
• 35 lt/m drainage
• Lifetime Guarantee

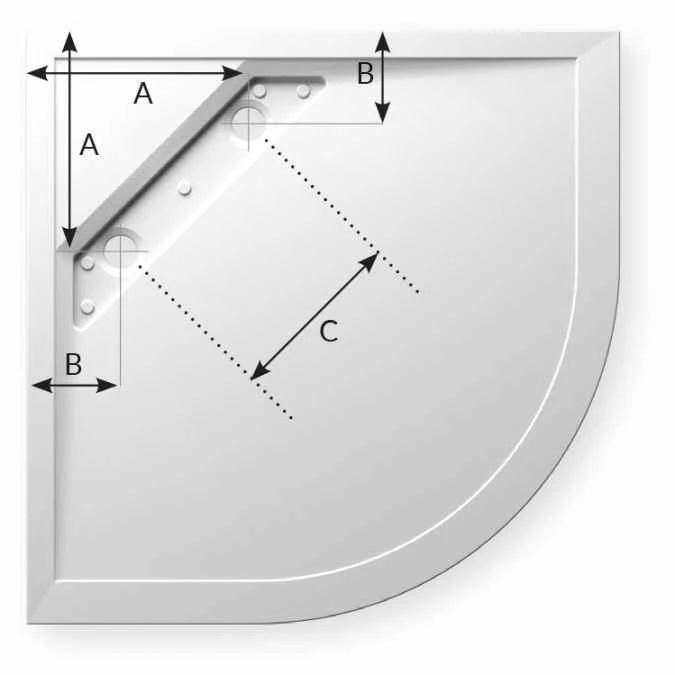

• Waste Positions:  A – 336mm B – 142mm C – 275mm
