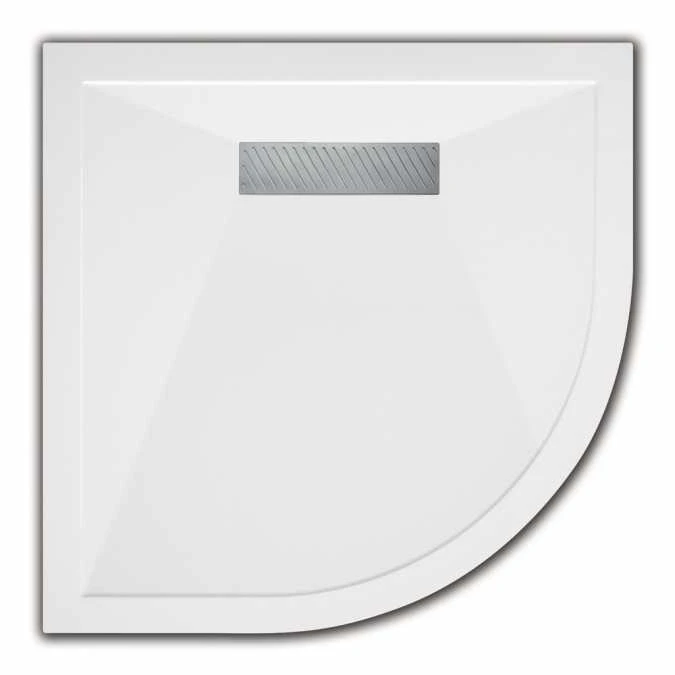

TrayMate TM25 Linear Quadrant Shower Tray – 800 X 800mm

TrayMate Quadrant TM25 Linear Shower Tray 800 x 800mm

The TrayMate TM25 Linear Quadrant Shower Tray has been designed for a broad range of users, including young children and older people due to it’s flush to floor entry, flat surface and flush fitting waste cover which minimises hazardous trip areas. Smart water technology allows for surplus water to be drawn away quickly to prevent water pooling  and reduces the risk of slipping, this also allows the tray to appear almost flat when fitted flush to the floor to achieve a seamless wetroom look.

The waste has been designed to be fully load-bearing, which means that the TrayMate Linear Quadrant Shower Tray is even wheelchair accessible.

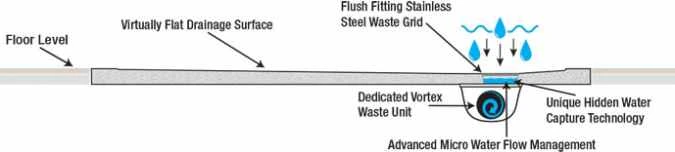

Unique to the TrayMate TM25 Linear Range is its smart water capture technology which allows it to draw water from the compact waste at up to 30 litres per minute. The TM25 Linear Shower Tray is a breakthrough in shower tray design, offering the modern look of a wetroom for the entire family without the associated cost and fitting challenges that usually come with wetroom installations. The TM25 Quadrant Shower Tray is fitted just like any other shower tray, no tanking or waterproofing is required.

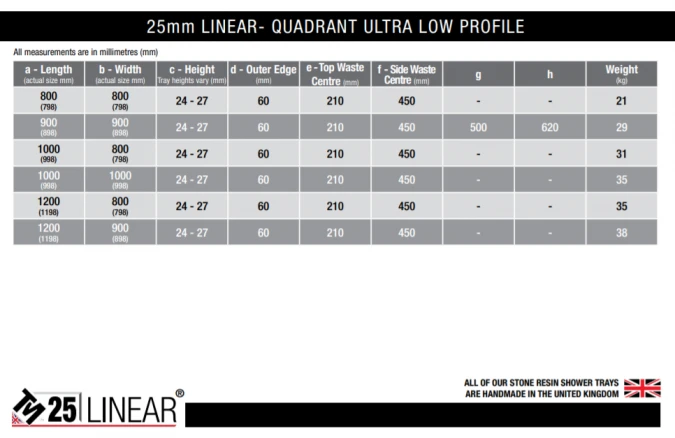

Features and Specifications

• Length: 800mm
• Width: 800mm
• Depth: 24-27mm
• Weight: 29KG
• Includes Smart Water Technology
• Water removal tested at up to 30 litres per minute
• Low profile design allows for easy access, even by wheelchair due to the load-bearing design of the flush fit waste cover
• Lifetime Guarantee
• All TrayMate TM25 Linear Trays come with waste and grill included
• 100% Stone Resin Construction
• Fully Recyclable

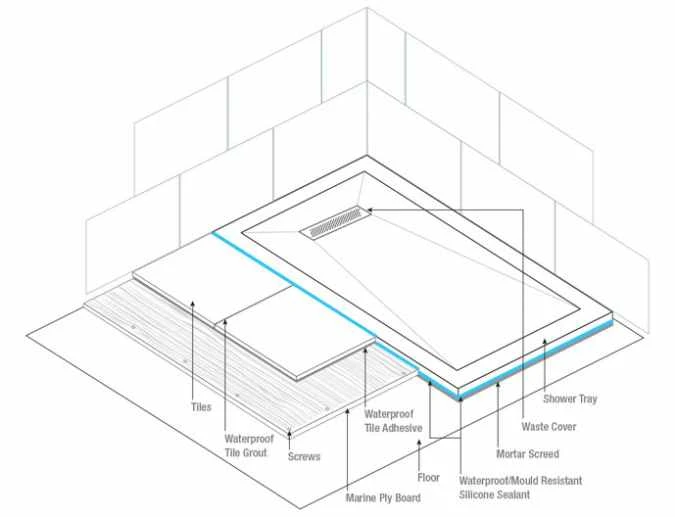

• Fits like a regular shower tray, no tanking or waterproofing required.
• Fully complies with EN274 European standard for shower flow rates
• Tough repairable gelcoat surface
• Designed and made in the UK

Please Note – Some of the images are of rectangular trays, this is to show the flush to floor fit of the TrayMate TM25 Linear Shower Trays.

For Technical Specifications and Fitting Guides – Click Here
